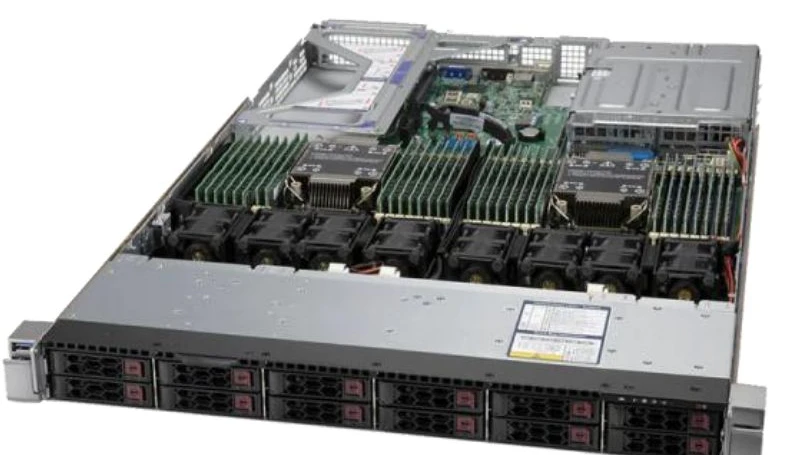

BC120G3-H
1U general-purpose compute server equipped with dual 3rd Gen Intel® Xeon® Scalable processors, expandable to 32 DIMM slots and 8TB ECC DDR4 DRAM. Supports up to 4 PCIe 4.0 slots for high-speed data transmission and scalability. Provides up to 12 2.5-inch drive bays to meet large-capacity storage needs. Equipped with up to two 1200W redundant Titanium-level PSUs to ensure stable power supply and enhance system reliability.
Model_RefBC120G3-H
Category_Id伺服器
Build_Status: OnlineUUID: 15
Status: AvailableBUILD_UUID: 15
Specifications
| Form Factor / Form Factor | 1U Rackmount |
|---|---|
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+(LGA-4189) |
| Chipset / Chipset | Intel C621A |
| Memory / Memory | Up to 32 DIMM slots Up to 8TB: 32x 256GB DRAM/PMem |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM Support Intel Optane Persistent Memory 200 Series |
| Storage / Storage | 12x 2.5" hot-swap NVMe/SATA/SAS drive bays |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1/5/10 with Intel VROC |
| NVMe / NVMe | Support NVMe RAID 0/1/5/10 with Intel VROC |
| PCIe Slots / PCIe Slots | 1 PCIe 4.0 x16 LP slots(Internal) 1 PCIe 4.0 x16 LP slots 2 PCIe 4.0 x16 FHHL slots |
| Network / Network | O1: None O2: 2x 10GbE BaseT(X710-AT2) O3: 2x 10GbE BaseT and 2x 10GbE SFP+(X710-TM4) |
| PSU / PSU | 2x 1200W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 43 mm (1.7") Width: 437 mm (17.2") Depth: 739 mm (29.1") |
