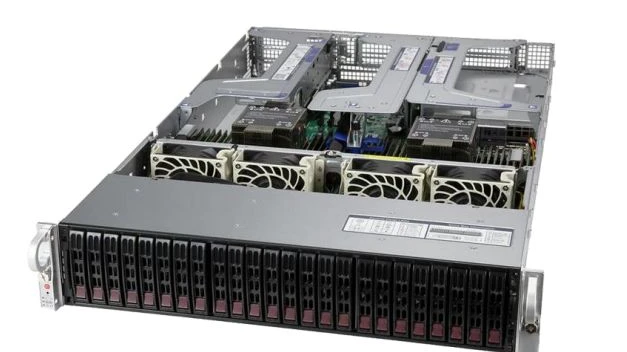

BC220G3-H
2U general-purpose compute server equipped with dual 3rd Gen Intel® Xeon® Scalable processors; features 32 DIMM slots supporting up to 8TB of 3200MHz ECC DDR4 memory; equipped with 24 front 2.5-inch hot-swappable drive bays supporting NVMe, SATA or SAS solid-state drives; supports up to 6 PCIe 4.0 slots, providing massive storage and general-purpose computing power.
Model_RefBC220G3-H
Category_Id伺服器
Build_Status: OnlineUUID: 17
Status: AvailableBUILD_UUID: 17
Specifications
| Form Factor / Form Factor | 2U Rackmount |
|---|---|
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+(LGA-4189) |
| Chipset / Chipset | Intel C621 |
| Memory / Memory | Up to 32 DIMM slots Up to 8TB: 32x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM Support Intel Optane Persistent Memory 200 Series |
| Storage / Storage | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1/5/10 with Intel VROC |
| NVMe / NVMe | Support NVMe RAID 0/1/5/10 with Intel VROC |
| PCIe Slots / PCIe Slots | 1 PCIe 4.0 x8 LP slots(Internal) 5 PCIe 4.0 x8 FHHL slots 1 PCIe 4.0 x16 FHHL slots 1 PCIe 4.0 x16 LP slots |
| Network / Network | O1: None O2: 2x 10GbE BaseT(X710-AT2) O3: 2x 10GbE BaseT and 2x 10GbE SFP+(X710-TM4) |
| PSU / PSU | 2x 1600W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 89 mm (3.5") Width: 437 mm (17.2") Depth: 717 mm (28.2"） |
