BC440G3-P

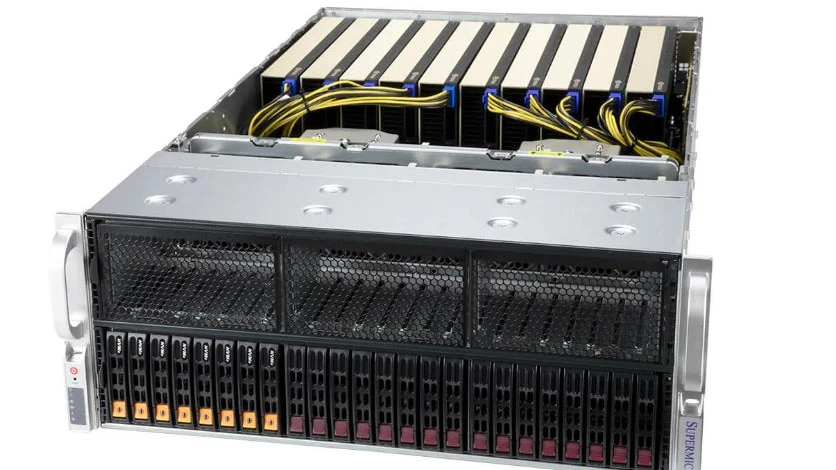

4U high-performance computing GPU server with dual-socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors; features 32 memory slots supporting up to 8TB of 3200MHz ECC DDR4 RAM; equipped with 24 front hot-swappable 2.5" NVMe/SAS/SATA drive bays and 12 PCIe 4.0 x16 FHFL expansion slots, supporting up to 10 double-wide or 10 single-wide GPUs to meet deep learning computing requirements.
Model_RefBC440G3-P
Category_Id伺服器
Build_Status: OnlineUUID: 22
Status: AvailableBUILD_UUID: 22
Specifications
| Form Factor / Form Factor | 4U Rackmount |
|---|---|
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+ (LGA-4189) |
| Chipset / Chipset | Intel C621A |
| Memory / Memory | Up to 32 DIMM slots Up to 8TB: 32x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM Support Intel Optane Persistent Memory 200 Series |
| Storage / Storage | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays ; 2 M.2 NVMe for boot drive only |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1/5/10 with Intel VROC |
| NVMe / NVMe | Support NVMe RAID 0/1/5/10 with Intel VROC |
| PCIe Slots / PCIe Slots | 12 PCIe 4.0 x16 FHFL slots |
| GPUs / GPUs | 10 |
| CPU-GPU Interconnect / CPU-GPU Interconnect | PCIe 4.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect / GPU-GPU Interconnect | NVIDIA NVLink Bridge (optional) |
| Network / Network | 1 PCIe 4.0 x16 slots for AIOM(OCP 3.0) with NCSI |
| PSU / PSU | 4x 2000W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 178 mm (7") Width: 437 mm (17.2") Depth: 737 mm (29") |
