TECHNICAL_SPEC // 01

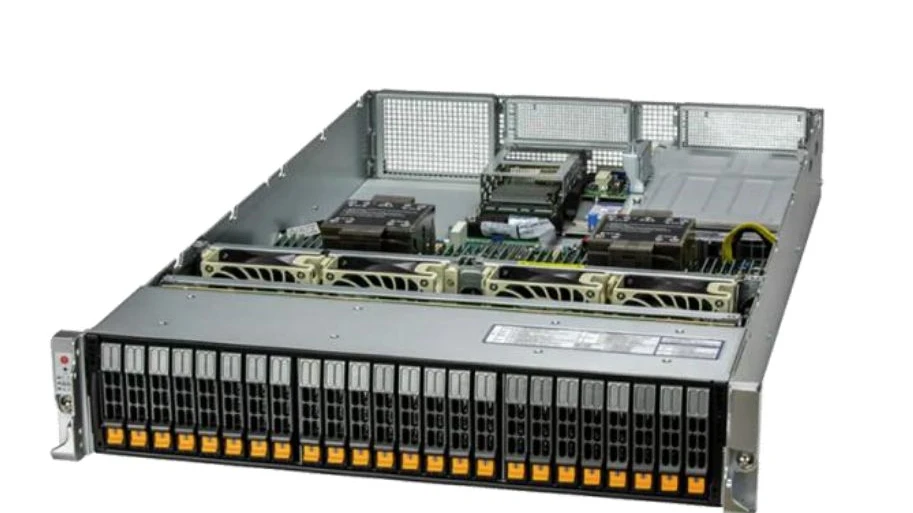

BS270G3
2U high-performance storage server equipped with 3rd Generation Intel Xeon Scalable processors and 3200MHz ECC DDR4 memory, supporting up to 8TB maximum memory capacity; features up to 24 hot-swappable 2.5-inch NVMe/SATA/SAS drive bays and 2 M.2 NVMe/SATA3 slots to meet high-capacity and high-speed storage requirements; supports multiple RAID configurations to ensure data security and reliability.
Model_RefBS270G3
Category_Id存儲
Build_Status: OnlineUUID: 27
Status: AvailableBUILD_UUID: 27
Specifications
| Form Factor / Form Factor | 2U Rackmount |
|---|---|
| Node / Node | 1 Node |
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+ (LGA-4189) per Node |
| Chipset / Chipset | Intel C621A |
| Memory / Memory | Up to 32 DIMM slots Up to 8TB: 32x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM Support Intel Optane Persistent Memory 200 Series |
| Storage / Storage | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays ; 2 M.2 NVMe/SATA3 |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1/5/10 with Intel VROC |
| NVMe / NVMe | Support NVMe RAID 0/1/5/10 with Intel VROC |
| PCIe Slots / PCIe Slots | 4 PCIe 4.0 x16 or x8 FHHL slots (Optional) 4 PCIe 4.0 x8 FHHL slots (Optional) |
| Network / Network | 2 PCIe 4.0 x16 slots for AIOM(OCP 3.0) with NCSI |
| PSU / PSU | 2x 1600W Redundant Power supply, Titanium Level |
| Dimensions / Dimensions | Height: 89 mm (3.5") Width: 437 mm (17.2") Depth: 760 mm (29.9") |
