TECHNICAL_SPEC // 01

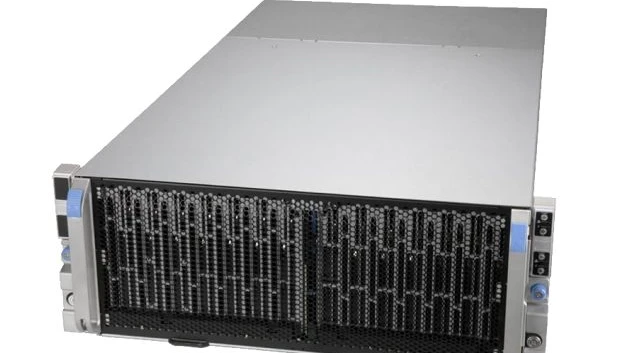

BS450G3-S
4U general-purpose storage server with dual-socket 3rd Generation Intel® Xeon® Scalable processors; supports up to 16 ECC DDR4-3200 memory slots; 3 PCIe 4.0 x16 HHHL PCIe expansion slots; 60 hot-swappable 3.5-inch SATA3/SAS3 drive bays (4 dedicated to 2.5-inch NVMe), 2 2.5-inch drive bays, and 2 M.2 NVMe slots. Flexible storage options meet large-capacity storage requirements.
Model_RefBS450G3-S
Category_Id存儲
Build_Status: OnlineUUID: 20
Status: AvailableBUILD_UUID: 20
Specifications
| Form Factor / Form Factor | 4U Rackmount |
|---|---|
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor;Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+ (LGA-4189) |
| Chipset / Chipset | Intel C621A |
| Memory / Memory | Up to 16 DIMM slots Up to 4TB: 16x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM |
| Storage / Storage | 60x 3.5" hot-swap SATA3/SAS3 drive bays ; 2x 2.5" 7mm drive bays 4x 2.5" NVMe drive bays （Optional）; 2 M.2 NVMe/SATA3 |
| PCIe Slots / PCIe Slots | 3 PCIe 4.0 x16 LP slots |
| Network / Network | 2x 10GbE BaseT |
| PSU / PSU | 2x 2000W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 174 mm (7") Width: 446 mm (17.6") Depth: 900 mm (34.1") |
